Optimizing your mountain bike setup is a fundamental step for any rider looking to improve control, comfort, and safety on technical trails. The cockpit configuration, specifically the handlebar angle and lever placement, dictates how your upper body interacts with the bike’s geometry. Proper alignment ensures that your wrists remain in a neutral position, reducing fatigue and preventing long term injuries like carpal tunnel or tendonitis.
For B2B distributors and cycling hardware manufacturers, understanding these technical nuances is essential for providing value-added support to retail clients and professional mechanics. A well-configured mountain bike allows the rider to navigate steep descents and technical climbs with confidence, ensuring the equipment performs as intended by the engineers.
To set the bar angle on a mountain bike, you should rotate the handlebars within the stem until the rise and sweep align with your natural wrist angle, typically resulting in the "upsweep" pointing slightly upward and the "backsweep" angled toward the rider. Once the neutral position is found, secure the stem faceplate bolts in a cross pattern to the manufacturer's specified torque setting.
The following guide provides a comprehensive breakdown of cockpit ergonomics. We will explore everything from the physical angle of the bar to the precision required for torquing clamps and optimizing lever reach for single finger braking. This technical deep dive is designed to help professionals and enthusiasts achieve the perfect interface between man and machine.
Angle of the bar
Properly torquing brake/shifter clamps
Single finger braking
Lever reach
Handlebar width

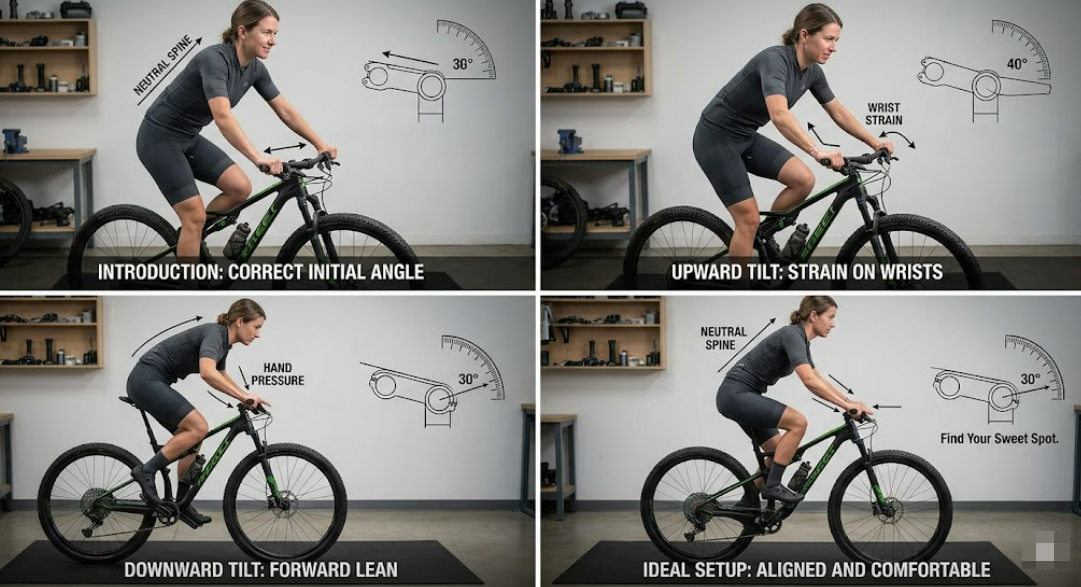

The angle of the bar is set by rotating the handlebar forward or backward within the stem clamp to align the natural rise and sweep of the tubing with the rider's forearms.
The geometry of a mountain bike handlebar is defined by two primary measurements: backsweep and upsweep. Backsweep refers to the degree to which the bars angle back toward the rider, while upsweep refers to the upward angle from the center of the bar to the tips. When these are adjusted correctly, the bar should feel like a natural extension of your arms. If the bar is rolled too far forward, it can put excessive pressure on the outer edge of your palms. Conversely, rolling it too far back often causes the wrists to drop, leading to poor braking form and reduced control in technical terrain.
To find the sweet spot, start with the bars in a neutral position where the rise of the bar is roughly parallel to the fork angle. Stand on the mountain bike in your typical "attack position" with elbows slightly bent. Your wrists should be straight, not cocked upward or drooping down. Most professional mechanics look for a slight upward tilt of the ends of the bars, which supports the hand's natural arch. Small adjustments of even 2 or 3 degrees can significantly change the pressure distribution across your hands.
When professional riders test new setups, they often use the "incremental roll" method. This involves making a mark on the bar and stem, then moving the bar in 2mm increments. The goal is to maximize the contact patch between the hand and the grip. A mountain bike with a perfectly angled bar will feel more stable at high speeds because the rider's weight is evenly distributed through the steering axis rather than being concentrated on specific pressure points in the wrist.
Reduced Wrist Fatigue: Maintains a neutral skeletal alignment, preventing nerve compression during long rides on a mountain bike.
Improved Steering Input: Ensures that pushing and pulling forces are applied evenly across the handlebar diameter.
Better Weight Distribution: Helps keep the front wheel planted during steep climbs without sacrificing descending stability.
Properly torquing brake and shifter clamps involves using a calibrated torque wrench to tighten bolts to the specific Newton-meter (Nm) values etched on the components, ensuring they stay in place during use but can still rotate under a heavy impact.
Precision is paramount when dealing with modern mountain bike materials, especially carbon fiber and lightweight aluminum alloys. Over-tightening a clamp can create stress risers that lead to catastrophic handlebar failure. Most brake and shifter clamps require between 2Nm and 5Nm of torque. However, a common professional tip for mountain bike setup is to leave the clamps just tight enough that they do not move during normal operation, but can be twisted by hand with significant force. This "safety slip" allows the levers to rotate during a crash rather than snapping off.
When installing these components, it is essential to clean the handlebar surface first. If you are using a carbon handlebar on your mountain bike, apply a small amount of carbon friction paste to the inside of the clamps. This paste contains tiny particles that increase friction, allowing you to achieve a secure hold at a lower torque setting. This protects the integrity of the carbon weave while ensuring your shifters don't migrate inward while you are hammering through a rock garden.
Consistency across the cockpit is also vital. You should ensure that the gap between the clamp halves is even on both the top and bottom if the design requires it. Always tighten bolts in small increments, alternating between them to ensure even pressure distribution. For B2B suppliers, providing components with clear, laser-etched torque specifications is a hallmark of quality that professional mechanics prioritize when selecting parts for high-performance mountain bike builds.
Brake Levers: Typically 3 to 5 Nm
Trigger Shifters: Typically 2 to 4 Nm
Dropper Post Remotes: Typically 1 to 3 Nm
Lock-on Grips: Typically 2 to 3 Nm
Single finger braking is the practice of positioning brake levers further inboard on the handlebar so that the index finger hooks the end of the lever blade, providing maximum leverage and keeping the remaining fingers on the grips for control.
Modern hydraulic disc brakes on a mountain bike are incredibly powerful and designed to be operated with just one finger. If your brake levers are pushed up against your grips, your index finger likely lands on the middle or inside of the lever blade. This is inefficient. By moving the lever assembly further toward the center of the mountain bike handlebar, you align your index finger with the "hook" at the very end of the lever. This maximizes the mechanical advantage of the lever arm, requiring less physical force to achieve the same stopping power.
Maintaining three fingers and the thumb on the grips at all times significantly increases your ability to manuever the mountain bike through rough terrain. When you use two fingers to brake, you lose a substantial amount of grip strength and control over the steering. This is particularly dangerous during high-speed descents or technical jumps where a firm hold on the bars is non-negotiable. Professional mountain bike instructors always emphasize "index finger only" to help students build better habits for technical trail riding.
To set this up, loosen your brake clamps and slide them inward. Get into your riding position and reach for the brakes. The tip of your index finger should rest naturally in the curve of the lever blade. You may find that your shifter needs to be moved as well; many modern mountain bike components use "matchmaker" style clamps that allow the shifter to bolt directly to the brake lever, keeping the cockpit clean and allowing for synchronized adjustment.
Increased Grip Strength: Keeps more of the hand wrapped around the mountain bike grips for better stability.
Fine Modulation: Allows for more precise control of braking force, preventing unwanted wheel lock-up.
Reduced Arm Pump: Requires less muscular effort from the hand to slow the bike down, preserving energy for long descents.
Lever reach is the adjustment of the starting position of the brake lever blade relative to the handlebar, tailored to the length of the rider's fingers to ensure immediate access to braking power.
Every rider has a different hand size, and mountain bike manufacturers account for this by including a reach adjust screw on the brake lever body. For riders with smaller hands, the levers can be brought closer to the bar so they don't have to "stretch" to grab the brakes. For those with larger hands, moving the levers further out prevents the blades from crushing the other fingers against the grip during hard braking. The ideal reach allows the first knuckle of the index finger to hooked over the lever while the hand is in a relaxed, natural position on the mountain bike.
The adjustment process usually involves a small 2mm or 3mm Allen key or a dedicated thumbwheel on the lever. When adjusting reach, it is important to consider the "bite point" of the brakes. If you pull the levers in too close to the bar, they might bottom out against the grips before full braking power is achieved. On a high-end mountain bike, you can often adjust both the reach and the contact point independently to find the perfect balance between comfort and performance.
Environmental factors also play a role in reach settings. For example, if you are wearing thick winter gloves, you may need to move the levers slightly further out to accommodate the extra material. Conversely, during a long race where hand fatigue is a factor, bringing the levers slightly closer can reduce the strain on the extensor muscles of the forearm. Consistency between the left and right levers is crucial for balanced handling on the mountain bike, so use a ruler or calipers if you want to be truly precise.
Finger Placement: First knuckle should comfortably hook the lever.
Grip Clearance: Lever should not touch the handlebar or other fingers when fully pulled.
Symmetry: Ensure both left and right levers are set to the same distance from the grip.
Bite Point Consistency: Check that the brakes engage at the same point in the lever throw.
Handlebar width refers to the end-to-end measurement of the bars, which should be optimized based on the rider's shoulder width and the type of terrain they frequent on their mountain bike.
The trend in the mountain bike industry has shifted toward wider bars, often ranging from 760mm to 800mm. Wide bars provide more leverage, making it easier to manuever a large-wheeled bike through technical sections and providing more stability at high speeds. However, bars that are too wide can lead to shoulder pain and make it difficult to navigate through tight trees. Finding the right width is a balance between leverage and ergonomic comfort. A common rule of thumb is to perform a "natural push-up" and measure the distance between the outside of your hands; this is often a good starting point for your mountain bike handlebar width.
If you find that your bars feel cumbersome or cause a "tugging" sensation in your upper back, they may be too wide. Most mountain bike handlebars are designed to be trimmed. They often feature measurement marks at the ends to ensure an even cut. Before cutting, try moving your grips and controls inward by 5mm or 10mm and riding for a few days. This "non-destructive" testing allows you to feel the change in handling before making a permanent modification to your mountain bike equipment.
For B2B retailers, stocking various widths and materials is essential to meet the needs of different disciplines. A cross-country racer might prefer a narrower 720mm bar for aerodynamic efficiency and weight savings, while an enduro or downhill rider will almost always opt for 780mm or wider for maximum control. The material—be it carbon fiber for vibration damping or aluminum for impact resistance—also affects how the width feels to the rider.
Width Category | Best For | Pros | Cons |
Narrow (700-740mm) | XC Racing / Tight Trails | Light weight, fits through gaps | Less leverage, twitchy steering |
Medium (750-770mm) | Trail Riding / All-Mountain | Balanced control, versatile | Jack of all trades, master of none |
Wide (780-820mm) | Enduro / Downhill | High stability, max leverage | Can cause shoulder strain, tree strikes |
Mastering the cockpit setup of a mountain bike is an iterative process that blends mechanical precision with personal preference. By carefully adjusting the bar angle, ensuring proper torque for safety, and optimizing the placement of levers for single-finger use, riders can unlock a new level of performance and comfort. Whether you are a B2B professional providing the latest components to the market or a dedicated rider seeking the perfect trail experience, these technical adjustments are the foundation of a superior ride. Always remember that small changes can lead to significant improvements in how a mountain bike handles, so take the time to dial in your settings for the ultimate control on the dirt.
